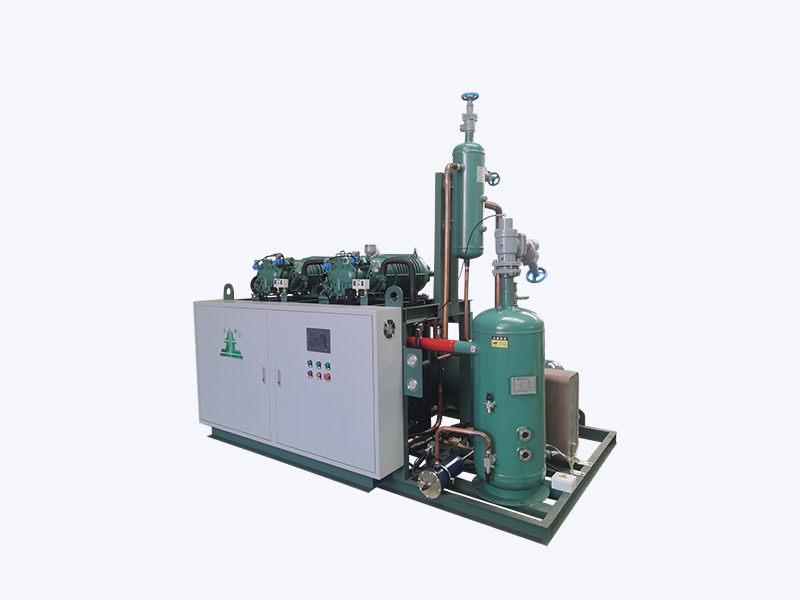

螺杆机组的特点：
♦ 机组包含高、中、低温系列，可满足于蒸发温度 10℃～40℃或更低温度的制冷系统。
♦ 机组类型包含螺杆单机组和螺杆并联机组，可满足各类制冷系统的需要。
♦ 机组采用台湾汉钟、德国比泽尔或台湾复盛半封闭螺杆 压缩机，具有效率高、寿命长、震动小及噪音低等特点。
♦ 机组可实现多级能量调节或无级能量调节，可适用于不同冷负荷的变化，有效地降低能耗。
♦ 机组配置齐全，主要的制冷配件及电气控制元件均采用知名品牌，性能可靠。
♦ 电控系统智能化程度高，采用微电脑控制器自动控制，定时累计运行时间，实现压缩机的轮值。
♦ 电控系统具有缺相、过热、过载、欠压、排气温度、油 温、低油位、油流及系统高低压等多种安全保护，确保运行的可靠性。
♦ 中低温机组配置经济器运行，大大提高系统的运行效率, 降低运行成本。
♦ 机组结构紧凑，高度集成化，大大节约机房面积，安装 和操作十分方便。
♦ 机组制冷剂R22、R404A可选，单台并联机组压缩机可以并联7台。

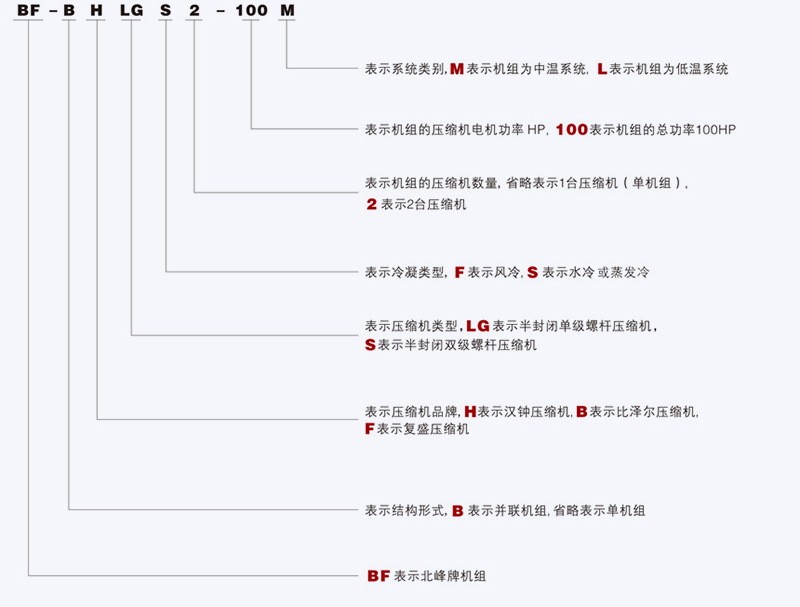

螺杆机组型号编制说明
机组型号说明
中温螺杆单机组制冷量
R22 Watt(50Hz 380v)
|
机组型号 |
冷凝温度(℃) |
↓ |
制冷量(kw) 功率消耗(kw) | ||||||
| 蒸发温度(℃) | |||||||||
| 0 | -10 | -20 | -30 | -35 | -40 | -45 | |||
|
BF-HLGF -40M |
40 |
Qo |
106 |
71.6 |
56.6 |
36.8 |
|
|
|
|
Pe |
30.2 |
27.7 |
27.7 |
25.8 |
|
|
|
||
|
BF-HLGF -40M |
45 |
Qo |
98.7 |
66.2 |
53.5 |
34.5 |
|
|
|
|
Pe |
32.9 |
30.2 |
30.6 |
27.7 |
|
|
|
||
|
BF-HLGS -50M |
40 |
Qo |
139.2 |
94.1 |
74.7 |
48.4 |
|
|
|
|
Pe |
37.8 |
34.7 |
34.4 |
32 |
|
|
|
||
|
BF-HLGF -50M |
45 |
Qo |
129.7 |
89.9 |
70.4 |
45.3 |
|
|
|
|
Pe |
41.2 |
37.8 |
38 |
35.4 |
|
|
|
||
|
BF-HLGS -60M |
40 |
Qo |
151.6 |
105 |
79.8 |
51.9 |
|
|
|
|
Pe |
41.5 |
38 |
38.1 |
35.5 |
|
|
|
||
|
BF-HLGF -60M |
45 |
Qo |
141.2 |
94.7 |
75.5 |
48.7 |
|
|
|
|
Pe |
45.2 |
41.5 |
42.1 |
38.5 |
|
|
|
||
|
BF-HLGS -70M |
40 |
Qo |
184.8 |
124.9 |
99.4 |
64.4 |
|
|
|
|
Pe |
50.5 |
46.3 |
48.2 |
45 |
|
|
|
||
|
BF-HLGF -70M |
45 |
Qo |
172.1 |
119 |
93.7 |
60.5 |
|
|
|
|
Pe |
55.1 |
50.5 |
53.3 |
48.4 |
|
|
|
||
|
BF-HLGS -80M |
40 |
Qo |
202.8 |
137.1 |
106.9 |
69.5 |
|
|
|
|
Pe |
55 |
50.4 |
49.7 |
46.3 |
|
|
|
||
|
BF-HLGF -80M |
45 |
Qo |
188.9 |
126.7 |
101.1 |
65 |
|
|
|
|
Pe |
60 |
55 |
55 |
51.2 |
|
|
|
||
|
BF-HLGS -90M |
40 |
Qo |
239.2 |
161.7 |
126.5 |
82 |
|
|
|
|
Pe |
61.9 |
56.8 |
57.4 |
53.4 |
|
|
|
||
|
BF-HLGF -90M |
45 |
Qo |
222.8 |
149.6 |
119.2 |
77 |
|
|
|
|
Pe |
67.5 |
62 |
63.4 |
59.1 |
|
|
|
||
|
BF-HLGS -100M |
40 |
Qo |
252.7 |
170.9 |
133.1 |
86.4 |
|
|
|
|
Pe |
65.1 |
59.7 |
61 |
57.1 |
|
|
|
||
|
BF-HLGF -100M |
45 |
Qo |
235.4 |
158.1 |
126 |
81.3 |
|
|
|
|
Pe |
71 |
65.2 |
67.5 |
62.8 |
|
|
|
||
|
BF-HLGS -105M |
40 |
Qo |
276.5 |
186.9 |
148.8 |
96.7 |
|
|
|
|
Pe |
71.7 |
65.8 |
65.8 |
61.4 |
|
|
|
||
|
BF-HLGF -105M |
45 |
Qo |
257.6 |
172.9 |
140.4 |
90.7 |
|
|
|
|
Pe |
78.2 |
71.8 |
72.8 |
67.8 |
|
|
|
||
|
BF-HLGS -110M |
40 |
Qo |
299.3 |
202.3 |
160.3 |
104.1 |
|
|
|
|
Pe |
78.2 |
71.8 |
71.1 |
66.3 |
|
|
|
||
|
BF-HLGF -110M |
45 |
Qo |
278.8 |
187.1 |
151.2 |
97.6 |
|
|
|
|
Pe |
85.3 |
78.3 |
78.6 |
73.2 |
|
|
|
||
|
BF-HLGS -120M |
40 |
Qo |
329.4 |
222.7 |
174.3 |
113.1 |
|
|
|
|
Pe |
87 |
79.8 |
78.7 |
73.3 |
|
|
|
||
|
BF-HLGF -120M |
45 |
Qo |
306.9 |
205.9 |
164.3 |
106.1 |
|
|
|
|
Pe |
94.9 |
87 |
87 |
81 |
|
|
|
||
注：1、蒸发温度>-20℃机组不带经济器；蒸发温度-≤0℃机组带经济器。
2、此为汉钟压缩机，也可根据客户需要选用其他压缩机品牌（比泽尔、复盛）。
中温螺杆单机组制冷量
R404A Watt(50Hz 380v)
|
机组型号 |
冷凝温度(℃) |
↓ |
制冷量(kw) 功率消耗(kw) | |||||||
| 蒸发温度(℃) | ||||||||||
| 0 | -10 | -20 | -30 | -35 | -40 | -45 | ||||
|
BF-HLGS -40M |
40 |
Qo |
111.1 |
76.2 |
63.9 |
41.8 |
|
|
|
|
|
Pe |
36.3 |
34 |
35.3 |
31.8 |
|
|
|
|||
|
BF-HLGF -40M |
45 |
Qo |
100.3 |
67.9 |
59.2 |
38 |
|
|
|
|
|
Pe |
39.4 |
36.9 |
39.4 |
34 |
|
|
|
|||
|
BF-HLGS -50M |
40 |
Qo |
144.9 |
99.2 |
83.2 |
54.4 |
|
|
|
|
|
Pe |
46.1 |
43.2 |
44.9 |
41 |
|
|
|
|||
|
BF-HLGF -50M |
45 |
Qo |
130 |
88.3 |
77 |
49.4 |
|
|
|
|
|
Pe |
50.1 |
46.9 |
50.1 |
43.6 |
|
|
|
|||
|
BF-HLGS -60M |
40 |
Qo |
160.2 |
109.6 |
91.9 |
60.1 |
|
|
|
|
|
Pe |
51.6 |
48.4 |
50.2 |
46 |
|
|
|
|||
|
BF-HLGF -60M |
45 |
Qo |
144.3 |
97.6 |
85.1 |
54.6 |
|
|
|
|
|
Pe |
56.1 |
52.5 |
56.1 |
48.6 |
|
|
|
|||
|
BF-HLGS -70M |
40 |
Qo |
192.9 |
132.1 |
110.8 |
72.4 |
|
|
|
|
|
Pe |
63.5 |
56.6 |
58.7 |
53.7 |
|
|
|
|||
|
BF-HLGF -70M |
45 |
Qo |
173.9 |
117.6 |
102.5 |
65.8 |
|
|
|
|
|
Pe |
65.5 |
61.4 |
65.6 |
57.5 |
|
|
|
|||
|
BF-HLGS -80M |
40 |
Qo |
216.2 |
148 |
124.1 |
81.2 |
|
|
|
|
|
Pe |
67.8 |
63.6 |
66 |
60.4 |
|
|
|
|||
|
BF-HLGF -80M |
45 |
Qo |
194.9 |
131.8 |
114.9 |
73.8 |
|
|
|
|
|
Pe |
73.7 |
69 |
73.8 |
64.5 |
|
|
|
|||
|
BF-HLGS -90M |
40 |
Qo |
249.4 |
170.7 |
143.2 |
93.6 |
|
|
|
|
|
Pe |
77.3 |
72.5 |
75.2 |
68.8 |
|
|
|
|||
|
BF-HLGF -90M |
45 |
Qo |
224.8 |
152 |
132.5 |
85.1 |
|
|
|
|
|
Pe |
83.9 |
78.6 |
84 |
73.9 |
|
|
|
|||
|
BF-HLGS -100M |
40 |
Qo |
263.6 |
180.5 |
151.3 |
98.9 |
|
|
|
|
|
Pe |
81.2 |
76.2 |
79.1 |
72.3 |
|
|
|
|||
|
BF-HLGF -100M |
45 |
Qo |
237.6 |
160.6 |
140.1 |
89.9 |
|
|
|
|
|
Pe |
88.2 |
82.7 |
88.4 |
77.8 |
|
|
|
|||
|
BF-HLGS -105M |
40 |
Qo |
288.5 |
197.6 |
165.6 |
108.3 |
|
|
|
|
|
Pe |
88 |
82.5 |
85.6 |
98.4 |
|
|
|
|||
|
BF-HLGF -105M |
45 |
Qo |
260 |
175.8 |
153.3 |
95.6 |
|
|
|
|
|
Pe |
95.5 |
89.5 |
95.7 |
84.6 |
|
|
|
|||
|
BF-HLGS -110M |
40 |
Qo |
317.9 |
217.7 |
182.5 |
119.3 |
|
|
|
|
|
Pe |
95.3 |
89.3 |
92.7 |
84.8 |
|
|
|
|||
|
BF-HLGF -110M |
45 |
Qo |
286.5 |
193.7 |
168.9 |
108. |
|
|
|
|
|
Pe |
103.5 |
96.9 |
103.6 |
92.3 |
|
|
|
|||
|
BF-HLGS -120M |
40 |
Qo |
343 |
234.8 |
196.9 |
128.8 |
|
|
|
|
|
Pe |
106.4 |
99.8 |
103.6 |
94.8 |
|
|
|
|||
|
BF-HLGF -120M |
45 |
Qo |
309.2 |
209.1 |
182.3 |
117 |
|
|
|
|
|
Pe |
115.6 |
108.3 |
115.8 |
101.7 |
|
|
|
|||
注：1、蒸发温度>-20℃机组不带经济器；蒸发温度≤20℃机组带经济器。
2、此为汉钟压缩机，也可根据客户需要选用其他压缩机品牌（比泽尔、复盛）。
低温螺杆单机组制冷量
R22 Watt(50Hz 380v)
|
机组型号 |
冷凝温度(℃) |
↓ |
制冷量(kw) 功率消耗(kw) | ||||||
| 蒸发温度(℃) | |||||||||
| -15 | -20 | -25 | -30 | -35 | -40 | -45 | |||
|
BF-BLGS -50L |
40 |
Qo |
89.3 |
75.8 |
63.6 |
52.5 |
42.3 |
33.3 |
25.5 |
|
Pe |
38.2 |
36.7 |
35.3 |
34 |
32.8 |
31.5 |
30.2 |
||
|
BF-BLGS -50L |
40 |
Qo |
86.7 |
73.4 |
61.4 |
50.6 |
40.5 |
31.7 |
24 |
|
Pe |
41.8 |
40.3 |
38.9 |
37.6 |
36.3 |
34.9 |
33.4 |
||
|
BF-BLGS -60L |
40 |
Qo |
110.8 |
93.3 |
77.6 |
63.7 |
50.7 |
39.5 |
29.8 |
|
Pe |
46.6 |
44.8 |
43.2 |
41.7 |
40.3 |
39 |
37.8 |
||
|
BF-BLGF -60L |
45 |
Qo |
106.9 |
90 |
74.6 |
61 |
48.4 |
37.4 |
27.9 |
|
Pe |
51.3 |
49.7 |
48.1 |
46.6 |
45 |
43.5 |
42 |
||
|
BF-BLGS -70L |
40 |
Qo |
123.7 |
104.7 |
88.5 |
72.3 |
58.1 |
45.8 |
35.1 |
|
Pe |
51.1 |
49.3 |
47.7 |
46.2 |
44.7 |
43.1 |
41.5 |
||
|
BF-BLGF -70L |
45 |
Qo |
120 |
101.4 |
84.6 |
69.6 |
55.7 |
43.5 |
33 |
|
Pe |
56 |
54.3 |
52.7 |
51 |
49.3 |
47.5 |
45.6 |
||
|
BF-BLGS -75L |
40 |
Qo |
133.1 |
112.9 |
99.2 |
78.3 |
63.1 |
49.8 |
38.3 |
|
Pe |
55.5 |
53.3 |
51.2 |
49.4 |
47.6 |
45.9 |
44.1 |
||
|
BF-BLGF -75L |
45 |
Qo |
128.9 |
109.1 |
91.3 |
75.3 |
60.4 |
47.4 |
36.1 |
|
Pe |
60.6 |
58.4 |
56.4 |
54.5 |
52.7 |
50.8 |
48.8 |
||
|
BF-BLGS -125L |
40 |
Qo |
224 |
189.6 |
159.1 |
132.6 |
107.2 |
85.1 |
66.1 |
|
Pe |
89.8 |
85.8 |
82 |
78.3 |
74.6 |
70.9 |
66.9 |
||
|
BF-BLGF -125L |
45 |
Qo |
216.3 |
183.2 |
153.3 |
127.5 |
102.4 |
80.6 |
61.7 |
|
Pe |
98.6 |
94.5 |
90.5 |
86.5 |
82.3 |
77.8 |
72.9 |
||
注：1、制冷量基于吸气过热10K;带经济器。
2、此为汉钟压缩机，也可根据客户需要选用其他压缩机品牌（比泽尔，复盛）
低温螺杆单机组制冷量
R404A Watt(50Hz 380v)
|
机组型号 |
冷凝温度(℃) |
↓ |
制冷量(kw) 功率消耗(kw) | ||||||
| 蒸发温度(℃) | |||||||||
| -15 | -20 | -25 | -30 | -35 | -40 | -45 | |||
|
BF-BLGS -50L |
40 |
Qo |
95.2 |
81.4 |
68.5 |
57.2 |
46.7 |
37.5 |
29.5 |
|
Pe |
46.1 |
44.4 |
42.6 |
40.8 |
39 |
37.5 |
35.4 |
||
|
BF-BLGS -50L |
45 |
Qo |
90.7 |
77.3 |
65.3 |
54.5 |
44.5 |
35.6 |
27.9 |
|
Pe |
51.1 |
49.2 |
47.3 |
45.3 |
43.4 |
41.5 |
39.8 |
||
|
BF-BLGS -60L |
40 |
Qo |
117.5 |
99.4 |
83.3 |
69 |
55.7 |
44.2 |
34.2 |
|
Pe |
54.1 |
52.4 |
51.1 |
50 |
48.9 |
47.6 |
46.1 |
||
|
BF-BLGF -60L |
45 |
Qo |
110.8 |
93.8 |
78.7 |
65.2 |
52.7 |
41.7 |
32.2 |
|
Pe |
60 |
58.4 |
57.1 |
55.9 |
54.7 |
53.4 |
51.9 |
||
|
BF-BLGS -70L |
40 |
Qo |
132.7 |
112.5 |
94.8 |
78.7 |
63.9 |
51 |
39.9 |
|
Pe |
58.8 |
57 |
55.2 |
53.4 |
51.5 |
49.6 |
47.7 |
||
|
BF-BLGF -70L |
45 |
Qo |
126.1 |
107 |
90 |
74.8 |
60.7 |
48.4 |
37.8 |
|
Pe |
65 |
63.2 |
61.4 |
59.5 |
57.6 |
55.6 |
53.4 |
||
|
BF-BLGS -75L |
40 |
Qo |
141.7 |
117.9 |
99.4 |
82.9 |
67.7 |
54.5 |
43 |
|
Pe |
64.9 |
66.3 |
60.7 |
58.1 |
55.5 |
53 |
50.7 |
||
|
BF-BLGF -75L |
45 |
Qo |
131.2 |
110.4 |
94.1 |
78.5 |
64.1 |
51.5 |
40.5 |
|
Pe |
72.6 |
69.8 |
67 |
64.2 |
61.5 |
59.1 |
56.8 |
||
|
BF-BLGS -125L |
40 |
Qo |
228.9 |
192.2 |
163.4 |
137.7 |
112.3 |
90.3 |
71.2 |
|
Pe |
107 |
101.1 |
96 |
91.5 |
87.5 |
83.9 |
80.7 |
||
|
BF-BLGF -125L |
45 |
Qo |
215.3 |
182.7 |
153.5 |
129.2 |
104.9 |
83.7 |
65.2 |
|
Pe |
116.3 |
110.3 |
105.1 |
100.5 |
96.2 |
92.2 |
88.2 |
||
注：1、制冷量基于吸气过热10K;带经济器。
2、此为汉钟压缩机，也可根据客户需要选用其他压缩机品牌（比泽尔，复盛）
中温螺杆单机组制冷量
R22 Watt(50Hz 380v)
|
机组型号 |
冷凝温度(℃) |
↓ |
制冷量(kw) 功率消耗(kw) | ||||||
| 蒸发温度(℃) | |||||||||
| -15 | -20 | -25 | -30 | -35 | -40 | -45 | |||
|
BF-BHLGS2 -100M |
40 |
Qo |
212 |
143.2 |
113.2 |
73.6 |
|
|
|
|
Pe |
60.4 |
55.4 |
55.4 |
51.6 |
|
|
|
||
|
BF-BHLGS2 -80M |
40 |
Qo |
197.4 |
132.4 |
107 |
69 |
|
|
|
|
Pe |
65.8 |
60.4 |
61.2 |
55.4 |
|
|
|
||
|
BF-BHLGS2 -100M |
40 |
Qo |
278.4 |
188.2 |
149.4 |
96.8 |
|
|
|
|
Pe |
75.6 |
69.4 |
69.8 |
64 |
|
|
|
||
|
BF-BHLGF2 -100M |
45 |
Qo |
259.4 |
179.8 |
140.8 |
90.6 |
|
|
|
|
Pe |
82.4 |
77.6 |
76 |
70.8 |
|
|
|
||
|
BF-BHLGS2 -120M |
40 |
Qo |
303.2 |
204.8 |
163 |
103.4 |
|
|
|
|
Pe |
83 |
76 |
77.8 |
72.8 |
|
|
|
||
|
BF-BHLGF2 -120M |
45 |
Qo |
282.4 |
189.4 |
156.6 |
98.6 |
|
|
|
|
Pe |
90.4 |
83 |
86.4 |
80.6 |
|
|
|
||
|
BF-BHLGS3 -150M |
40 |
Qo |
417.6 |
282.3 |
224.1 |
145.2 |
|
|
|
|
Pe |
113.4 |
104.1 |
103.2 |
96 |
|
|
|
||
|
BF-BHLGF3 -150M |
45 |
Qo |
389.1 |
269.7 |
211.2 |
135.9 |
|
|
|
|
Pe |
123.6 |
113.4 |
114 |
106.2 |
|
|
|
||
|
BF-BHLGS2 -160M |
40 |
Qo |
405.6 |
274.2 |
218.2 |
138.4 |
|
|
|
|
Pe |
110 |
100.8 |
103.2 |
96.4 |
|
|
|
||
|
BF-BHLGF2 -160M |
45 |
Qo |
377.8 |
253.4 |
209.4 |
132 |
|
|
|
|
Pe |
120 |
110 |
114.4 |
107 |
|
|
|
||
|
BF-BHLGS3 -180M |
40 |
Qo |
454.8 |
315 |
239.4 |
155.7 |
|
|
|
|
Pe |
124.5 |
114 |
114.30 |
106.5 |
|
|
|
||
|
BF-BHLGF3 -180M |
45 |
Qo |
423.6 |
284.1 |
226.5 |
146.1 |
|
|
|
|
Pe |
135.6 |
124.5 |
126.2 |
115.5 |
|
|
|
||
|
BF-BHLGS2 -200M |
40 |
Qo |
505.4 |
341.8 |
272 |
172.8 |
|
|
|
|
Pe |
130.2 |
119.4 |
122.2 |
114.2 |
|
|
|
||
|
BF-BHLGF2 -200M |
45 |
Qo |
470.8 |
316.2 |
261.2 |
165 |
|
|
|
|
Pe |
142 |
130.4 |
135.6 |
126.6 |
|
|
|
||
|
BF-BHLGS3 -240M |
40 |
Qo |
608.4 |
411.3 |
327.3 |
207.6 |
|
|
|
|
Pe |
165 |
151.2 |
154.8 |
144.6 |
|
|
|
||
|
BF-BHLGF3 -240M |
45 |
Qo |
566.7 |
380.1 |
314.1 |
198 |
|
|
|
|
Pe |
180 |
165 |
171.6 |
160.5 |
|
|
|
||
|
BF-BHLGS3 -270M |
40 |
Qo |
717.6 |
485.1 |
386.1 |
245.1 |
|
|
|
|
Pe |
185.7 |
170.4 |
174.3 |
162.9 |
|
|
|
||
|
BF-BHLGF3 -270M |
45 |
Qo |
668.4 |
448.8 |
370.8 |
234.3 |
|
|
|
|
Pe |
202.5 |
186 |
193.5 |
180.6 |
|
|
|
||
|
BF-BHLGS4 -440M |
40 |
Qo |
1197.2 |
809.2 |
644.4 |
408.8 |
|
|
|
|
Pe |
312.8 |
287.2 |
293.6 |
274.4 |
|
|
|
||
|
BF-BHLGF4 -440M |
45 |
Qo |
1115.2 |
748.4 |
618.4 |
390.4 |
|
|
|
|
Pe |
341.2 |
313.2 |
325.6 |
304 |
|
|
|
||
注：1、蒸发温度>-20℃机组不带经济器；蒸发温度≤-20℃机组带经济器，并联机组不带冷冻油。
2.此为汉钟压缩机，也可根据客户需要选用其他压缩机品牌（比泽尔、复盛）。
中温螺杆并联机组制冷量
R404A Watt(50Hz 380v)
|
机组型号 |
冷凝温度(℃) |
↓ |
制冷量(kw) 功率消耗(kw) | ||||||
| 蒸发温度(℃) | |||||||||
| -15 | -20 | -25 | -30 | -35 | -40 | -45 | |||
|
BF-BHLGF2 -80M |
45 |
Qo |
222.2 |
152.4 |
127.8 |
125.4 |
|
|
|
|
Pe |
72.6 |
68.00 |
70.60 |
63.6. |
|
|
|
||
|
BF-BHLGF2 -80M |
45 |
Qo |
200.6 |
115.8 |
118.4 |
76 |
|
|
|
|
Pe |
78.8 |
73.8 |
78.80 |
68.00 |
|
|
|
||
|
BF-BHLGS2 -100M |
40 |
Qo |
289.8 |
198.4 |
166.4 |
108.8 |
|
|
|
|
Pe |
92.2 |
86.4 |
89.8 |
82.00 |
|
|
|
||
|
BF-BHLGF2 -100M |
45 |
Qo |
260 |
176.6 |
154 |
98.8 |
|
|
|
|
Pe |
100.2 |
93.8 |
100.2 |
87.2 |
|
|
|
||
|
BF-BHLGS2 -120M |
40 |
Qo |
292.6 |
196.2 |
179 |
116.4 |
|
|
|
|
Pe |
96.4 |
90 |
99 |
89 |
|
|
|
||
|
BF-BHLGF2 -120M |
45 |
Qo |
262.2 |
170.8 |
166.2 |
103.4 |
|
|
|
|
Pe |
108.6 |
100.4 |
112.8 |
96.4 |
|
|
|
||
|
BF-BHLGS3 -150M |
40 |
Qo |
434.7 |
297.6 |
249.6 |
163.2 |
|
|
|
|
Pe |
138.3 |
129.60 |
134.7 |
123 |
|
|
|
||
|
BF-BHLGF3 -150M |
45 |
Qo |
390 |
264.9 |
231 |
148.2 |
|
|
|
|
Pe |
10.3 |
140.7 |
150.3 |
130.8 |
|
|
|
||
|
BF-BHLGS2 -160M |
40 |
Qo |
395 |
265 |
241.8 |
157 |
|
|
|
|
Pe |
126.8 |
118.2 |
130 |
120 |
|
|
|
||
|
BF-BHLGF2 -160M |
45 |
Qo |
354.2 |
230.8 |
224.4 |
143.2 |
|
|
|
|
Pe |
142.8 |
132 |
148.2 |
128 |
|
|
|
||
|
BF-BHLGS3 -180M |
40 |
Qo |
480.6 |
328.8 |
275.5 |
180.3 |
|
|
|
|
Pe |
153.9 |
145.2 |
150.6 |
138.0 |
|
|
|
||
|
BF-BHLGF3 -180M |
45 |
Qo |
432.9 |
292.8 |
255.3 |
163.8 |
|
|
|
|
Pe |
168.3 |
157.5 |
168.3 |
145.8 |
|
|
|
||
|
BF-BHLGS2 -200M |
40 |
Qo |
481.6 |
323 |
294.8 |
191.4 |
|
|
|
|
Pe |
151.8 |
141.4 |
155.6 |
143.6 |
|
|
|
||
|
BF-BHLGF2 -200M |
45 |
Qo |
431.8 |
285.8 |
273.6 |
174.6 |
|
|
|
|
Pe |
171 |
158 |
177.6 |
154.4 |
|
|
|
||
|
BF-BHLGS3 -240M |
40 |
Qo |
592.5 |
397.5 |
362.7 |
235.5 |
|
|
|
|
Pe |
190.2 |
177.3 |
195 |
180 |
|
|
|
||
|
BF-BHLGF3 -240M |
45 |
Qo |
531.3 |
346.2 |
336.6 |
214.8 |
|
|
|
|
Pe |
214.2 |
198 |
222.3 |
192 |
|
|
|
||
|
BF-BHLGS3 -270M |
40 |
Qo |
683.4 |
458.4 |
418.2 |
271.8 |
|
|
|
|
Pe |
216.6 |
201.9 |
222 |
204.9 |
|
|
|
||
|
BF-BHLGF3 -270M |
45 |
Qo |
612.6 |
405.6 |
388.2 |
247.8 |
|
|
|
|
Pe |
243.9 |
225.3 |
253.2 |
219.6 |
|
|
|
||
|
BF-BHLGS4 -440M |
40 |
Qo |
1161.6 |
778.8 |
710.8 |
461.6 |
|
|
|
|
Pe |
363.2 |
338.4 |
372.4 |
343.6 |
|
|
|
||
|
BF-BHLGF4 -440M |
45 |
Qo |
1041.2 |
689.2 |
659.6 |
421.2 |
|
|
|
|
Pe |
409.2 |
378 |
424.8 |
370.4 |
|
|
|
||
注：1、蒸发温度>-20°C机组不带经济器；蒸发温度≤-20°C机组带经济器，并联机组不带冷冻油。
2、此为汉钟压缩机，也可根据客户需要选用其他压缩机品牌（比泽尔、复盛）。
低温螺杆并联机组制冷量
R22 Watt(50Hz 380v)
|
机组型号 |
冷凝温度(℃) |
↓ |
制冷量(kw) 功率消耗(kw) | |||||||
| 蒸发温度(℃) | ||||||||||
| -15 | -20 | -25 | -30 | -35 | -40 | -45 | ||||
|
BF-BBLGS2 |
40 |
Qo |
247.4 |
209.3 |
177 |
144.6 |
116.2 |
91.6 |
70.2 |
|
|
-140L |
Pe |
102.2 |
98.6 |
95.4 |
92.4 |
89.4 |
86.2 |
83 |
||
|
BF-BBLGF2 |
45 |
Qo |
239.9 |
202.7 |
169.3 |
139.2 |
111.4 |
87 |
66 |
|
|
-140L |
Pe |
112 |
108.6 |
105.4 |
102 |
98.6 |
95 |
91.2 |
||
|
BF-BBLGS2 |
40 |
Qo |
266.4 |
225.8 |
198.3 |
156.6 |
126.2 |
99.6 |
76.6 |
|
|
-150L |
Pe |
111 |
106.8 |
102.4 |
98.8 |
95.2 |
91.8 |
88.2 |
||
|
BF-BBLGF2 |
45 |
Qo |
257.8 |
218.1 |
182.6 |
150.6 |
120.8 |
94.8 |
72.2 |
|
|
-150L |
Pe |
121.2 |
116.8 |
112.8 |
109 |
105.4 |
101.6 |
97.6 |
||
|
BF-BBLGS3 |
40 |
Qo |
399.5 |
338.7 |
297.5 |
234.9 |
189.3 |
149.4 |
114.9 |
|
|
-225L |
Pe |
166.5 |
159.9 |
153.6 |
148.2 |
142.8 |
137.7 |
132.3 |
||
|
BF-BBLGF3 |
45 |
Qo |
386.7 |
327.2 |
273.9 |
225.9 |
181.2 |
142.2 |
108.3 |
|
|
-225L |
Pe |
181.8 |
175.2 |
169.2 |
163.5 |
158.1 |
152.4 |
146.4 |
||
|
BF-BBLGS3 |
40 |
Qo |
672.2 |
568.9 |
477.3 |
397.8 |
321.6 |
255.3 |
198.3 |
|
|
-375L |
Pe |
269.4 |
257.4 |
246 |
234.9 |
223.8 |
212.7 |
200.7 |
||
|
BF-BBLGF3 |
45 |
Qo |
649 |
549.8 |
460 |
382.5 |
307.2 |
241.8 |
185.1 |
|
|
-375L |
Pe |
295.8 |
283.5 |
271.5 |
259.5 |
246.9 |
233.4 |
218.7 |
||
|
BF-BBLGS4 |
40 |
Qo |
532.8 |
451.6 |
396.6 |
313.2 |
252.4 |
199.2 |
153.2 |
|
|
-300L |
Pe |
222 |
213.2 |
204.8 |
197.6 |
190.4 |
183.6 |
176.4 |
||
|
BF-BBLGF4 |
45 |
Qo |
515.6 |
436.2 |
365.2 |
301.2 |
241.6 |
189.6 |
144.4 |
|
|
-300L |
Pe |
242.4 |
233.6 |
225.6 |
218 |
210.8 |
203.2 |
195.2 |
||
|
BF-BBLGS4 |
40 |
Qo |
896.3 |
758.5 |
636.4 |
530.4 |
428.8 |
340.4 |
264.4 |
|
|
-500L |
Pe |
359.2 |
343.2 |
328 |
313.2 |
298.4 |
283.6 |
267.6 |
||
|
BF-BBLGF4 |
45 |
Qo |
865.3 |
733.1 |
613.3 |
510 |
409.6 |
322.4 |
246.8 |
|
|
-500L |
Pe |
394.4 |
378 |
362 |
346 |
329.2 |
311.2 |
291.6 |
||
注：1、制冷量基于吸气过热10K;水冷机组冷却水进出水温差5K,带经济器，并联机组不带冷冻油。
2、此为汉钟压缩机，也可根据客户需要选用其他压缩机品牌（比泽尔，复盛）
低温螺杆并联机组制冷量
R404A Watt(50Hz 380v)
|
机组型号 |
冷凝温度(℃) |
↓ |
制冷量(kw) 功率消耗(kw) | ||||||
| 蒸发温度(℃) | |||||||||
| -15 | -20 | -25 | -30 | -35 | -40 | -45 | |||
|
BF-BBLGS2 -140L |
40 |
Qo |
265.4 |
225 |
189.6 |
157.4 |
127.8 |
102 |
79.8 |
|
Pe |
117.6 |
114 |
110.4 |
106.8 |
103 |
99.2 |
95.4 |
||
|
BF-BBLGS2 -140L |
45 |
Qo |
252.3 |
214 |
180 |
149.6 |
121.4 |
96.8 |
75.6 |
|
Pe |
130 |
126.6 |
122.8 |
119 |
115.2 |
111.2 |
106.8 |
||
|
BF-BBLGS2 -150L |
40 |
Qo |
283.3 |
235.8 |
198.8 |
165.8 |
135.4 |
109 |
86 |
|
Pe |
129.8 |
126.6 |
121.4 |
116.2 |
111 |
106 |
101.4 |
||
|
BF-BBLGF2 -150L |
45 |
Qo |
262.4 |
220.7 |
188.1 |
157 |
128.2 |
103 |
81 |
|
Pe |
145.2 |
139.6 |
134 |
128.4 |
123 |
118.2 |
113.6 |
||
|
BF-BBLGS3 -225L |
40 |
Qo |
425 |
323.7 |
298.2 |
248.7 |
203.1 |
163.5 |
129 |
|
Pe |
194.7 |
189.9 |
182.1 |
174.3 |
166.5 |
159 |
152.1 |
||
|
BF-BBLGF3 -225L |
45 |
Qo |
393.6 |
331 |
282.2 |
235.5 |
192.3 |
154.5 |
121.5 |
|
Pe |
217.8 |
209.4 |
201 |
192.6 |
184.5 |
177.3 |
170.4 |
||
|
BF-BBLGS3 -375L |
40 |
Qo |
686.8 |
576.7 |
490.3 |
413.1 |
336.9 |
270.9 |
213.6 |
|
Pe |
321 |
303.3 |
288 |
274.5 |
262.5 |
251.7 |
242.1 |
||
|
BF-BBLGF3 -375L |
45 |
Qo |
646 |
548 |
460.4 |
387.6 |
314.7 |
251.1 |
195.6 |
|
Pe |
348.9 |
330.9 |
315.3 |
301.5 |
288.6 |
276.6 |
264.6 |
||
|
BF-BBLGS4 -300L |
40 |
Qo |
566.6 |
471.6 |
397.6 |
331.6 |
270.8 |
218 |
172 |
|
Pe |
259.6 |
253.2 |
242.8 |
232.4 |
222 |
212 |
202.8 |
||
|
BF-BBLGF4 -300L |
45 |
Qo |
524.8 |
441.4 |
376.2 |
314 |
256.4 |
206 |
162 |
|
Pe |
290 |
279.2 |
268 |
256.8 |
246 |
236.4 |
227.2 |
||
|
BF-BBLGS4 -500L |
40 |
Qo |
915.7 |
769 |
653.8 |
550.8 |
449.2 |
361.2 |
284.8 |
|
Pe |
428 |
404.4 |
384 |
366 |
350 |
335.6 |
322.8 |
||
|
BF-BBLGF4 -500L |
45 |
Qo |
861.4 |
730.7 |
613.8 |
516.8 |
419.6 |
334.8 |
260.8 |
|
Pe |
465.2 |
441.2 |
420.4 |
402 |
384.8 |
368.8 |
352.8 |
||
注：1、制冷量基于吸气过热10K;水冷机组冷却水进出水温差5K,带经济器，并联机组不带冷冻油。
2、此为汉钟压缩机，也可根据客户需要选用其他压缩机品牌（比泽尔，复盛）

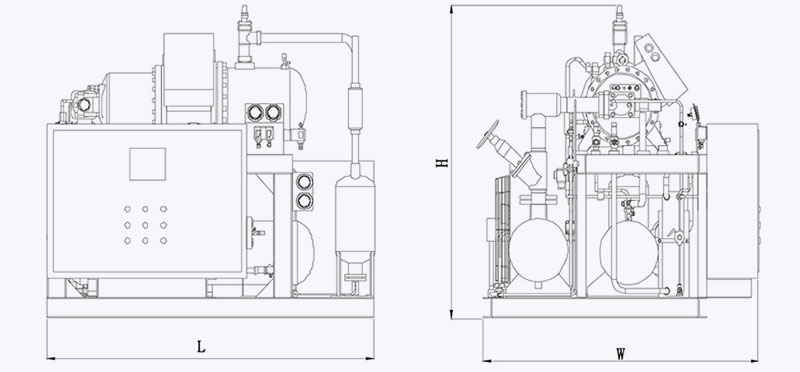

螺杆单机组外形尺寸图
螺杆单机组外形尺寸表
|
机组型号 |
机组接口 |
外形尺寸(mm) |
||||
|
排气管内径 (mm) |
供液管内径 (mm) |
吸气管外径 (mm) |
L (mm) |
W (mm) |
H (mm) |
|
|
BF-HLGS-40M BF-HLGF-40M |
Φ42 |
Φ28 |
Φ54 |
1850 |
1300 |
1650 |
|
BF-HLGS-50M BF-HLGF-50M |
Φ42 |
Φ28 |
Φ76 |
1850 |
1300 |
1650 |
|
BF-HLGS-60M BF-HLGF-60M |
Φ42 |
Φ35 |
Φ76 |
2050 |
1300 |
1650 |
|
BF-HLGS-70M BF-HLGF-70M |
Φ54 |
Φ35 |
Φ89 |
2050 |
1300 |
1650 |
|
BF-HLGS-80M BF-HLGF-80M |
Φ54 |
Φ35 |
Φ89 |
2050 |
1300 |
1650 |
|
BF-HLGS-90M BF-HLGF-90M |
Φ54 |
Φ35 |
Φ89 |
2150 |
1600 |
1650 |
|
BF-HLGS-100M BF-HLGF-100M |
Φ54 |
Φ35 |
Φ89 |
2150 |
1600 |
1650 |
|
BF-HLGS-105M BF-HLGF-105M |
Φ76 |
Φ42 |
Φ108 |
2250 |
1650 |
1700 |
|
BF-HLGS-110M BF-HLGF-110M |
Φ76 |
Φ42 |
Φ108 |
2250 |
1650 |
1700 |
|
BF-HLGS-120M BF-HLGF-120M |
Φ76 |
Φ42 |
Φ108 |
2250 |
1650 |
1700 |
|
BF-BLGS-50L BF-BLGF-50L |
Φ42 |
Φ28 |
Φ54 |
1850 |
1550 |
1650 |
|
BF-BLGS-60L BF-BLGF-60L |
Φ54 |
Φ28 |
Φ76 |
1850 |
1550 |
1650 |
|
BF-BLGS-70L BF-BLGF-70L |
Φ54 |
Φ35 |
Φ76 |
1850 |
1550 |
1700 |
|
BF-BLGS-75L BF-BLGF-75L |
Φ54 |
Φ35 |
Φ76 |
2250 |
1600 |
1700 |
|
BF-BLGS-125L BF-BLGF-125L |
Φ76 |
Φ35 |
Φ108 |
2250 |
1600 |
1800 |
注：排气管中Φ76为钢管外径
螺杆并联机组外形尺寸图
中温螺杆并联机组外形尺寸
|
机组型号 |
机组接口 |
Dimension(mm) |
||||
|
排气管外径(mm) |
供液管内径 (mm) |
吸气管外径 (mm) |
L (mm) |
W (mm) |
H (mm) |
|
|
BF-BHLGS2-80M |
Φ65 |
Φ35 |
Φ89 |
2600 |
1606 |
1670 |
| BF-BHLGF2-80M | ||||||
|
BF-BHLGS2-100M |
Φ65 |
Φ35 |
Φ89 |
2800 |
1886 |
1670 |
| BF-BHLGF2-100M | ||||||
|
BF-BHLGS2-120M |
Φ65 |
Φ42 |
Φ89 |
2800 |
1886 |
1750 |
| BF-BHLGF2-120M | ||||||
|
BF-BHLGS2-160M |
Φ89 |
Φ42 |
Φ108 |
2800 |
1886 |
1800 |
| BF-BHLGF2-160M | ||||||
|
BF-BHLGS2-200M |
Φ89 |
Φ54 |
Φ108 |
2800 |
1886 |
1800 |
| BF-BHLGF2-200M | ||||||
|
BF-BHLGS3-150M |
Φ89 |
Φ42 |
Φ108 |
3325 |
1886 |
1750 |
| BF-BHLGF3-150M | ||||||
|
BF-BHLGS3-180M |
Φ89 |
Φ42 |
Φ108 |
3619 |
1886 |
1750 |
| BF-BHLGF3-180M | ||||||
|
BF-BHLGS3-240M |
Φ89 |
Φ54 |
Φ108 |
4000 |
2500 |
2180 |
| BF-BHLGF3-240M | ||||||
|
BF-BHLGS3-270M |
Φ108 |
Φ54 |
2-Φ108 |
4000 |
2500 |
2280 |
| BF-BHLGF3-270M | ||||||
|
BF-BHLGS4-440M |
Φ133 |
2-Φ42 |
2-Φ133 |
5000 |
2550 |
2280 |
| BF-BHLGF4-440M | ||||||
低温螺杆并联机组外形尺寸
|
机组型号 |
机组接口 |
外形尺寸(mm) |
||||
|
排气管外径 (mm) |
供液管内径 (mm) |
吸气管外径 (mm) |
L (mm) |
W (mm) |
H (mm) |
|
|
BF-BBLGS2-140L |
Φ76 |
Φ42 |
Φ108 |
2845 |
1976 |
1770 |
|
BF-BBLGF2-140L |
||||||
|
BF-BBLGS2-150L |
Φ76 |
Φ42 |
Φ108 |
2845 |
1976 |
1770 |
|
BF-BBLGF2-150L |
||||||
|
BF-BBLGS3-225L |
Φ89 |
Φ54 |
Φ108 |
3640 |
2226 |
2060 |
|
BF-BBLGF3-225L |
||||||
|
BF-BBLGS3-375L |
Φ108 |
2-Φ42 |
2-Φ108 |
3850 |
2650 |
2300 |
|
BF-BBLGF3-375L |
||||||
|
BF-BBLGS4-300L |
Φ108 |
2-Φ42 |
2-Φ108 |
4350 |
2400 |
2180 |
|
BF-BBLGF4-300L |
||||||
|
BF-BBLGS4-500L |
Φ133 |
2-Φ54 |
2-Φ133 |
4750 |
2650 |
2300 |
|
BF-BBLGF4-500L |
||||||
注：进、出口径和外形尺寸根据实际情况可能有所变动，以实际尺寸为准。
联系我们获取免费报价和更多关于制冷设备的专业知识。您的项目将通过北峰找到合适的解决方案。
浙公网安备 33068302000710号
